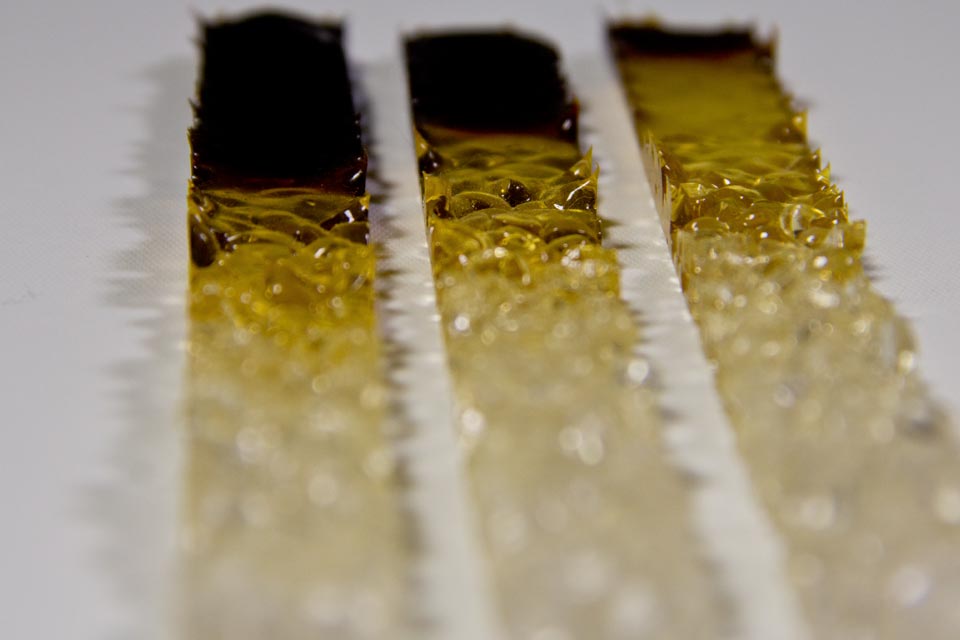

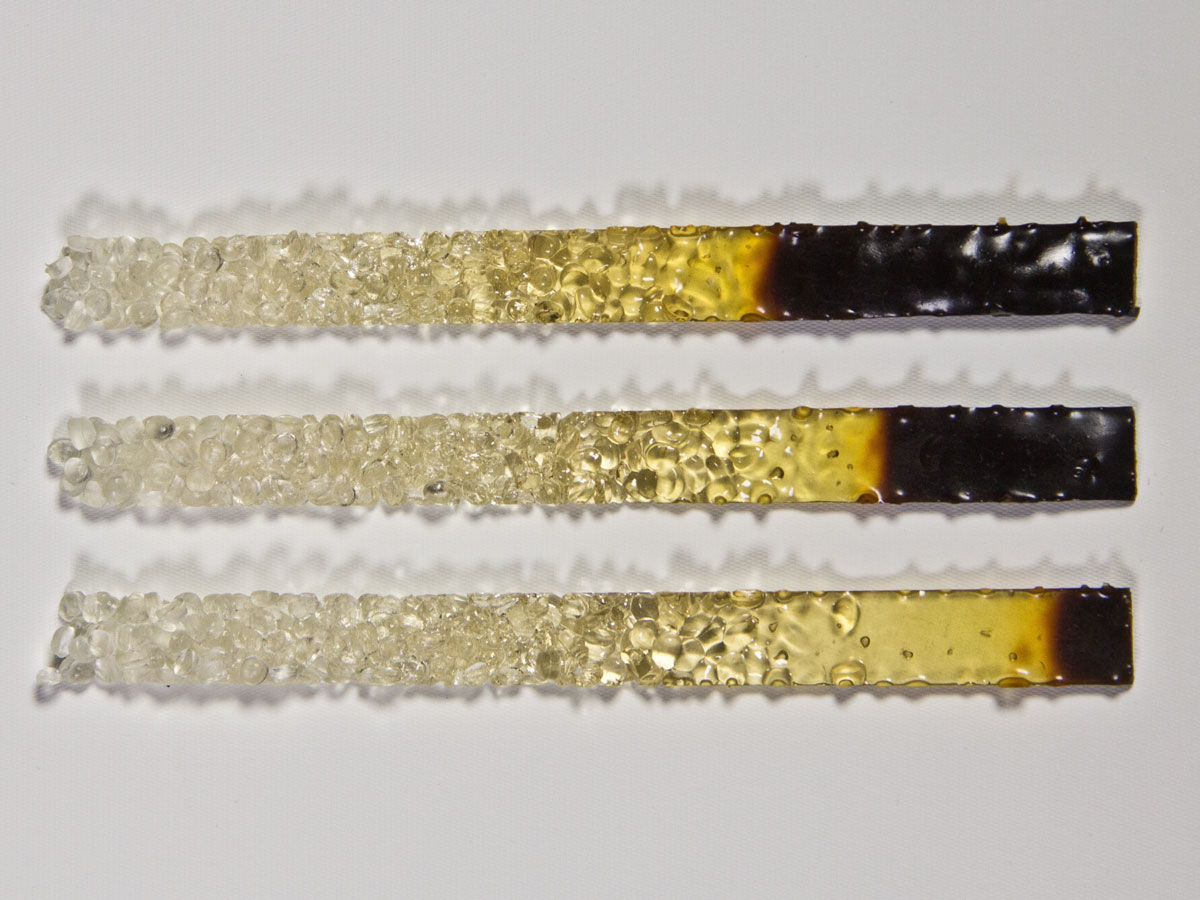

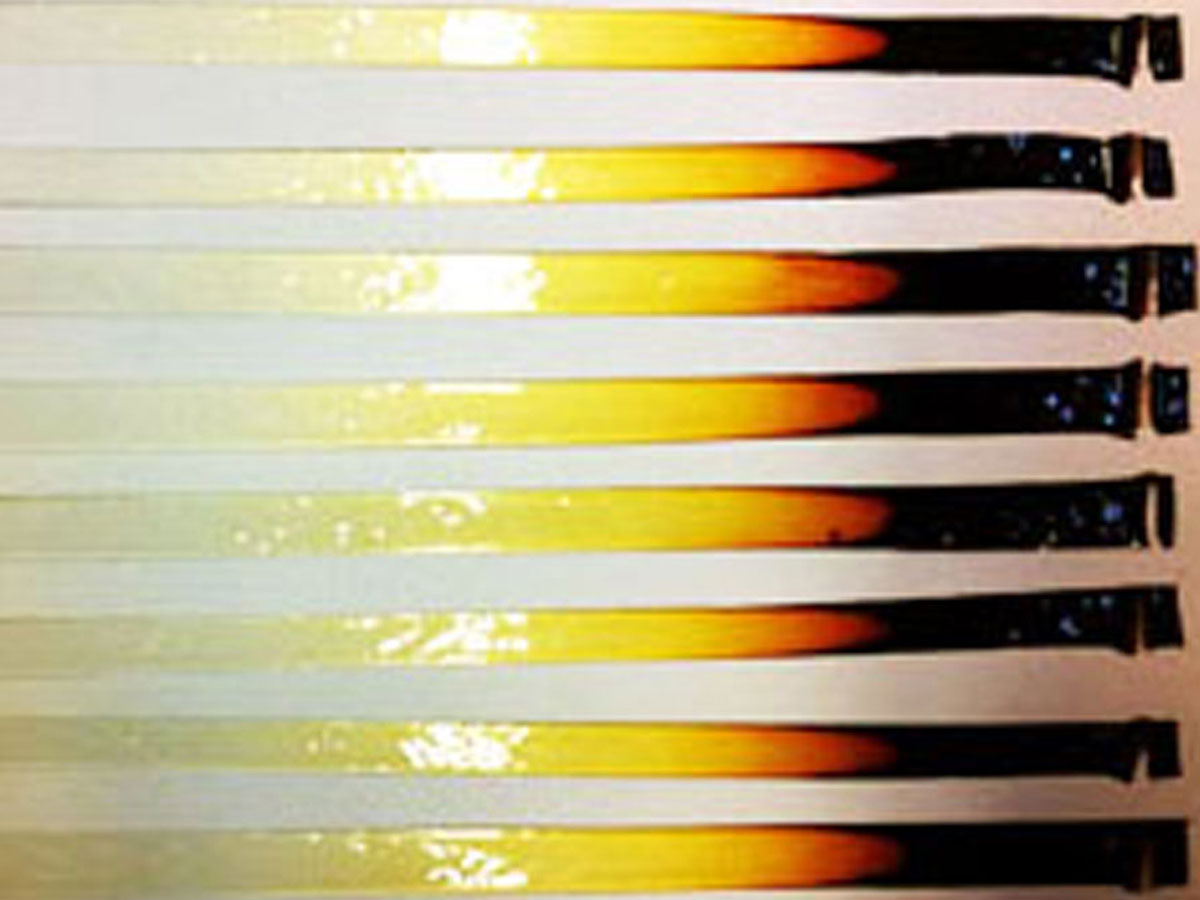

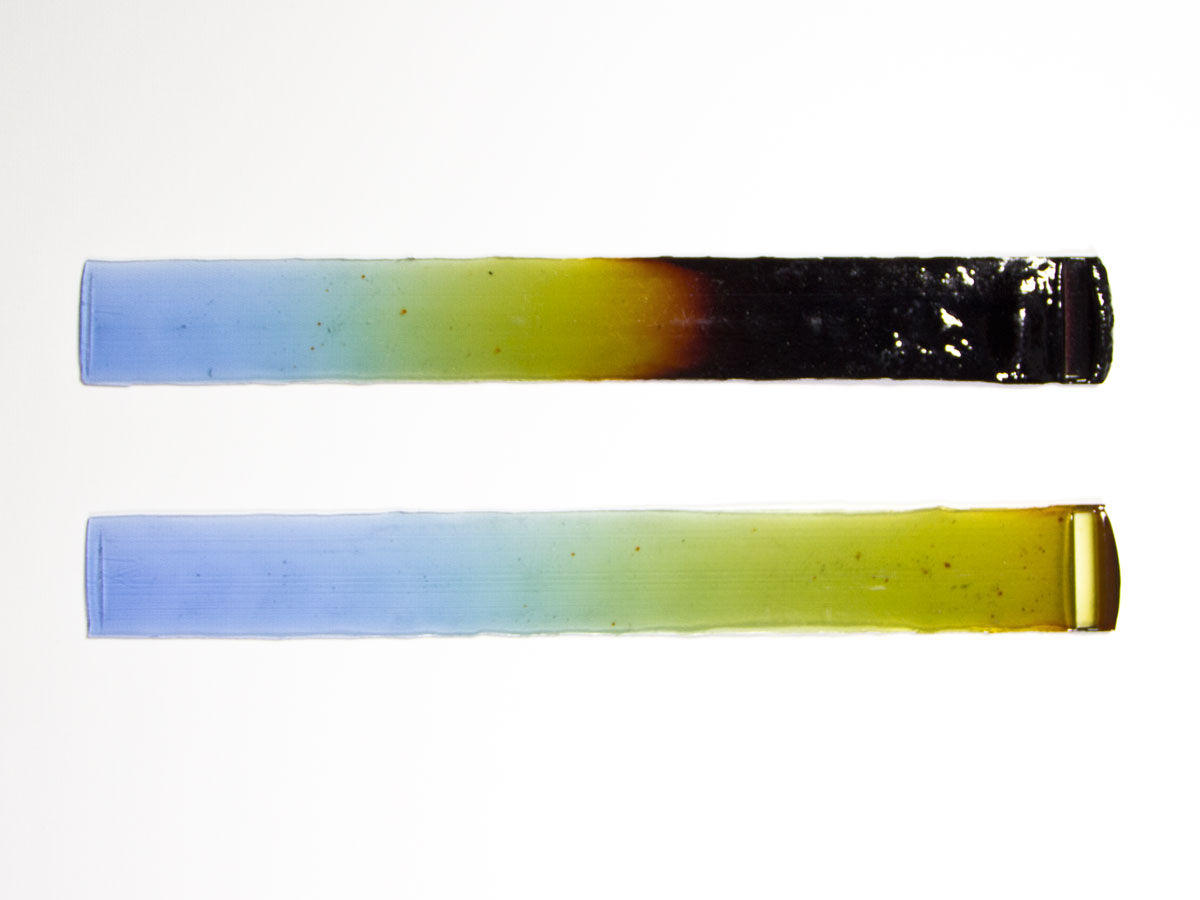

The new automatic testing oven, the Metrastat PLC TOUCH, makes it possible, like its predecessors, to expose polymer samples to heat, at constant temperature and for different lengths of time, to see the degradation and stabilizer consumption in plastic samples (PVC, PE, PP, PVDF, PTFE, plastisols, etc.).

The new oven has a better performance and reliability because equipped with Siemens automation, a programmable logic controller which regulates perfectly the heat distribution in the oven’s heating chamber.

The unit ensures the reproducible baking of 10 (or 5 larger) test samples simultaneously, with high precision and linearity.

Its resistance to corrosion is legendary. A linear exhaust system pulls corrosive and toxic fumes out of the oven for the duration of a test. The test time can be preset to any desired duration, from minutes up to one month. All the parameters, be it temperature, preheating time and test duration are set on the Siemens touch pannel replacing all the previous electronic commands of the METRASTAT 780 oven.

A new Metrastat integrated exhaust hood is also available now. It is equipped with an active carbon adsorption system and can be fixed directly on top of the oven.

Technical specifications of the Metrastat PLC TOUCH

• Dynamic oven for the progressive exposure of polymers to heat (DIN 5381F, AFNOR T51-224)
• Equiped with Siemens automation, a programmable logic controller which regulates perfectly the heat distribution inside the oven
• Resistant to corrosion from hydrogen halides and tropical climate conditions (316L stainless steel)

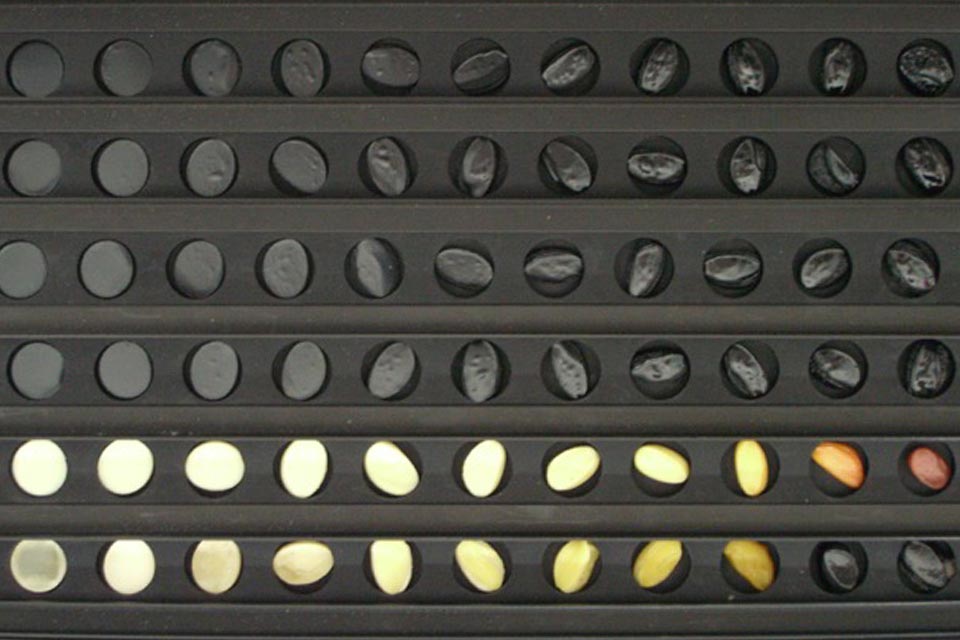

• Traveling carrying frame with ten/five separate non corrodable, non sticking sample holding trays
• Adjustable temperature limit selector with automatic shut-off
• Unlimited preheating time and unlimited choice of test durations
• Indication of the selected preheating time and test duration
• Automatic switch-over from the static preheating process to the dynamic baking process
• Process status on the touch screen indicating test duration and travel progression of the samples
• Early manual start of the baking process possible
• Emergency button for immediate interruption of the test followed by quick exit of the carrying plate
• Automatic quick exit of the carrying plate when restarting the apparatus after a power failure
• Modular construction for easy maintenance of the apparatus
